Spiral wraps & cable organizers
PE Spiral Wrap ↗
Explore sizes & drawings
Spiral wraps & cable organizersInquire about this product ↗
Cable Organizer Tube
PE cable organizer tubing gathers multiple cables into a tidy bundle, helping reduce abrasion and improve routing around desks, equipment and cabinets. An installation tool can speed cable insertion.
MaterialPE / Polyethylene
Size range8–40 mm
UseCable organization and abrasion protection
Data retained from the previous website. Confirm material grade and performance requirements for the selected model.
TECHNICAL DATA
Download specification CSV ↓
Specifications

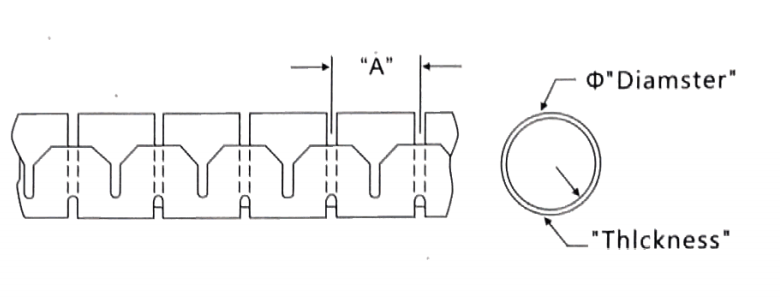

| Type | Diameter (mm) | Packing quantity (m/roll) | Inner diameter (mm) | Outer diameter (mm) | Thickness (mm) |
|---|---|---|---|---|---|
| 8MM | 6-8 | 100 | 6 | 8 | 0.5-0.55 |
| 10MM | 8-10 | 100 | 10 | 10 | 0.6-0.65 |
| 15MM | 12-15 | 100 | 13 | 16 | 0.7-0.75 |
| 20MM | 18-20 | 100 | 17 | 20 | 0.8-0.85 |
| 25MM | 22-25 | 50 | 23 | 25 | 0.85-1 |
| 28MM | 25-28 | 50 | 26 | 28 | 0.85-1 |
| 30MM | 28-30 | 50 | 29 | 30 | 1.05-1.1 |
| 40MM | 38-40 | 25 | 38 | 40 | 1.15-1.2 |

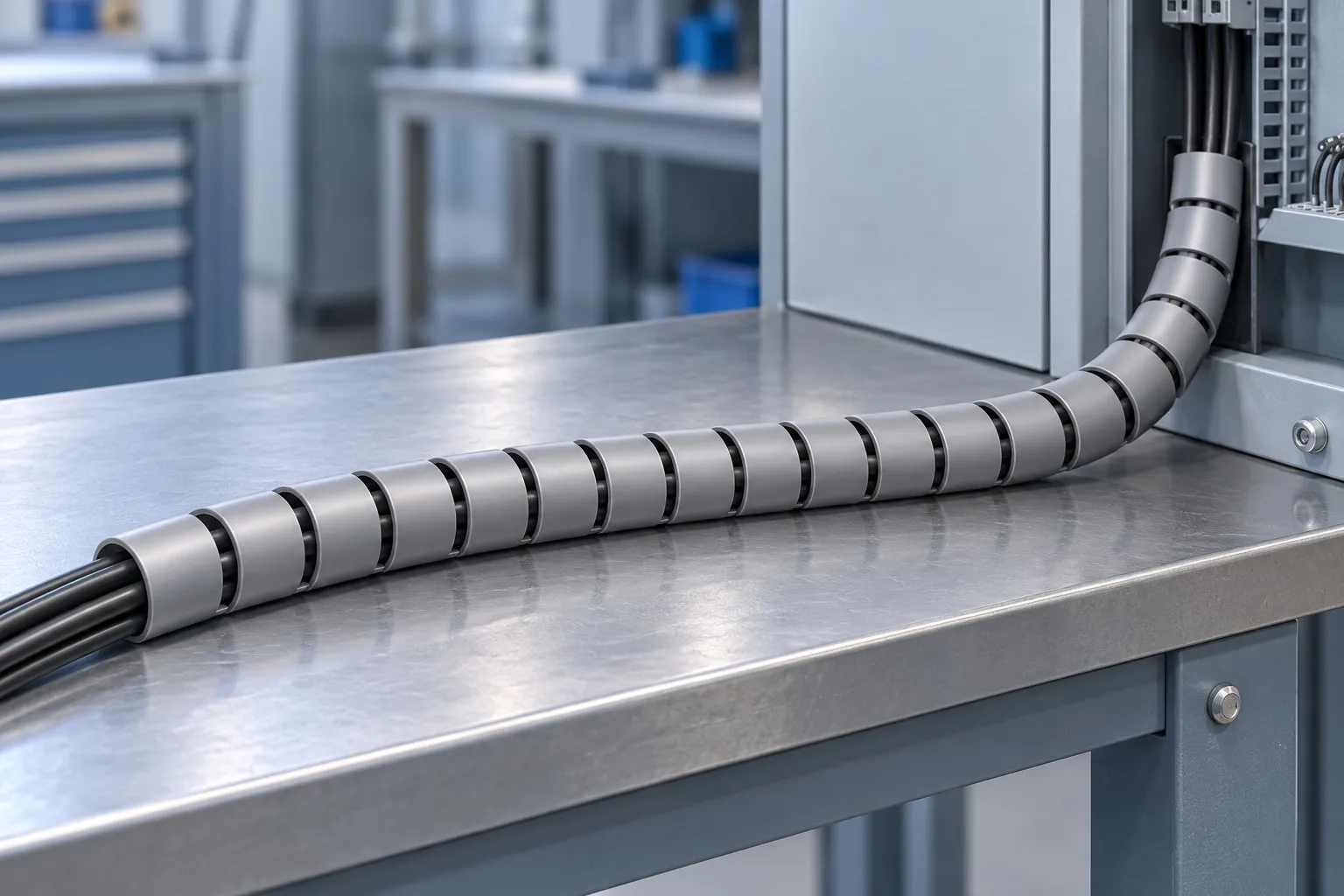

Application illustration
