PE Spiral Wrap
PE spiral wrap quickly bundles and protects wires, improves routing appearance and allows cables to branch out along the run. It is well suited to control cabinets, office equipment and general harness organization.
MaterialPE / Polyethylene
Temperature-40°C to 80°C
OptionFlame-retardant grade available
Data retained from the previous website. Confirm material grade and performance requirements for the selected model.
TECHNICAL DATA
Download specification CSV ↓
Specifications

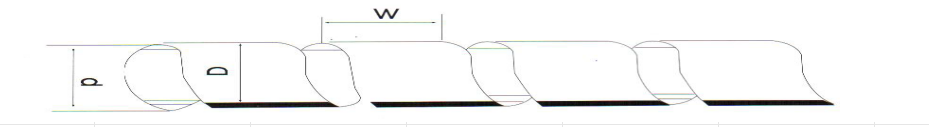

| Size | Inner diameter d (mm) | Outer diameter D (mm) | Pitch (mm) | Thickness (mm) | Packing (m/bag) |
|---|---|---|---|---|---|
| ZD-03 | 2±0.5 | 3±0.5 | 5±1 | 0.5±0.1 | 50 |
| ZD-04 | 3±0.5 | 4±0.5 | 6±1 | 0.5±0.1 | 50 |
| ZD-05 | 4±0.6 | 5±0.6 | 7±1 | 0.5±0.1 | 50 |
| ZD-06 | 5±0.5 | 6±0.5 | 8±2 | 0.5±0.1 | 20 |
| ZD-08 | 7±0.5 | 8±0.5 | 10±2 | 0.5±0.1 | 12 |
| ZD-10 | 8.8±0.5 | 10±0.5 | 12±2 | 0.6±0.1 | 10 |
| ZD-12 | 10.5±0.5 | 12±0.5 | 14±2 | 0.75±0.1 | 8 |
| ZD-14 | 12±1 | 14±1 | 16±2 | 1±0.1 | 5 |
| ZD-16 | 14±1 | 16±1 | 18±2 | 1±0.1 | 4 |
| ZD-18 | 16±1 | 18±1 | 20±2 | 1±0.1 | 3 |
| ZD-20 | 18±1 | 20±1 | 22±2 | 1±0.1 | 3 |
| ZD-25 | 22±1 | 25±1 | 27±2 | 1.2±0.2 | 3 |
| ZD-30 | 27±1 | 30±1 | 32±2 | 1.5±0.2 | 3 |

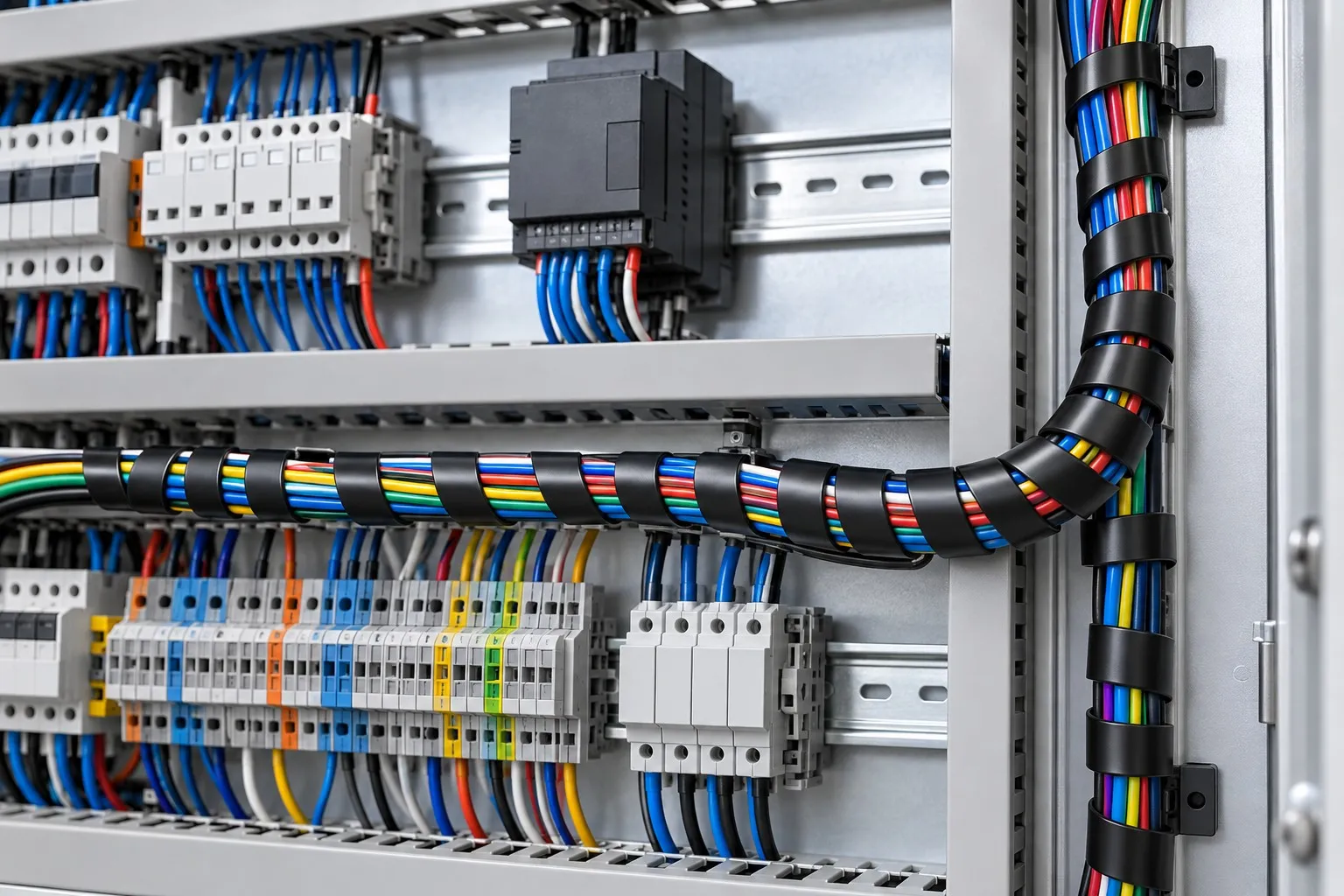

Application illustration
