Waterproof Corrugated Conduit Gland
This waterproof conduit gland combines a PA66 body with EPDM sealing parts to provide retention, sealing and dust protection at cable entries. It is suitable for control boxes, machinery enclosures and outdoor connections.
BodyPA66
SealEPDM
ProtectionIP68-10
Data retained from the previous website. Confirm material grade and performance requirements for the selected model.
TECHNICAL DATA
Download specification CSV ↓
Specifications
| Thread | Size | Conduit type | Conduit size | Thread OD | Thread length | Packing |
|---|---|---|---|---|---|---|
| PG7 | PG7-AD10 | AD10 | 1/4" conduit | 12.5 | 8 | 50 |
| PG9 | PG9-AD10 | AD10 | 1/4" conduit | 15.2 | 8 | 50 |
| PG11 | PG11-AD13 | AD13 | 5/16" conduit | 18.6 | 10 | 50 |
| PG13.5 | PG13-AD15.8 | AD15.8 | 3/8" conduit | 20.4 | 10 | 50 |
| PG13-AD18.5 | AD18.5 | 3/8" conduit | 20.4 | 10 | 50 | |
| PG16 | PG16-AD15.8 | AD15.8 | 3/8" conduit | 22.5 | 11 | 50 |
| PG16-AD18.5 | AD18.5 | 3/8" conduit | 22.5 | 11 | 50 | |
| PG16-AD21.2 | AD21.2 | 1/2" conduit | 22.5 | 11 | 50 | |
| PG21 | PG21-AD21.2 | AD21.2 | 1/2" conduit | 28.3 | 12 | 50 |
| PG21-AD25 | AD25 | 3/4" conduit | 28.3 | 12 | 50 | |
| PG21-AD28.5 | AD28.5 | 3/4" conduit | 28.3 | 12 | 50 | |
| PG29 | PG29-AD34.5 | AD34.5 | 1" conduit | 37 | 13 | 50 |
| PG36 | PG36-AD42.5 | AD42.5 | 11/4" conduit | 47 | 13 | 50 |
| PG42 | PG42-AD42.5 | AD42.5 | 11/4" conduit | 54 | 16 | 50 |
| PG48 | PG48-AD54.5 | AD54.5 | 2" conduit | 59.3 | 16 | 50 |

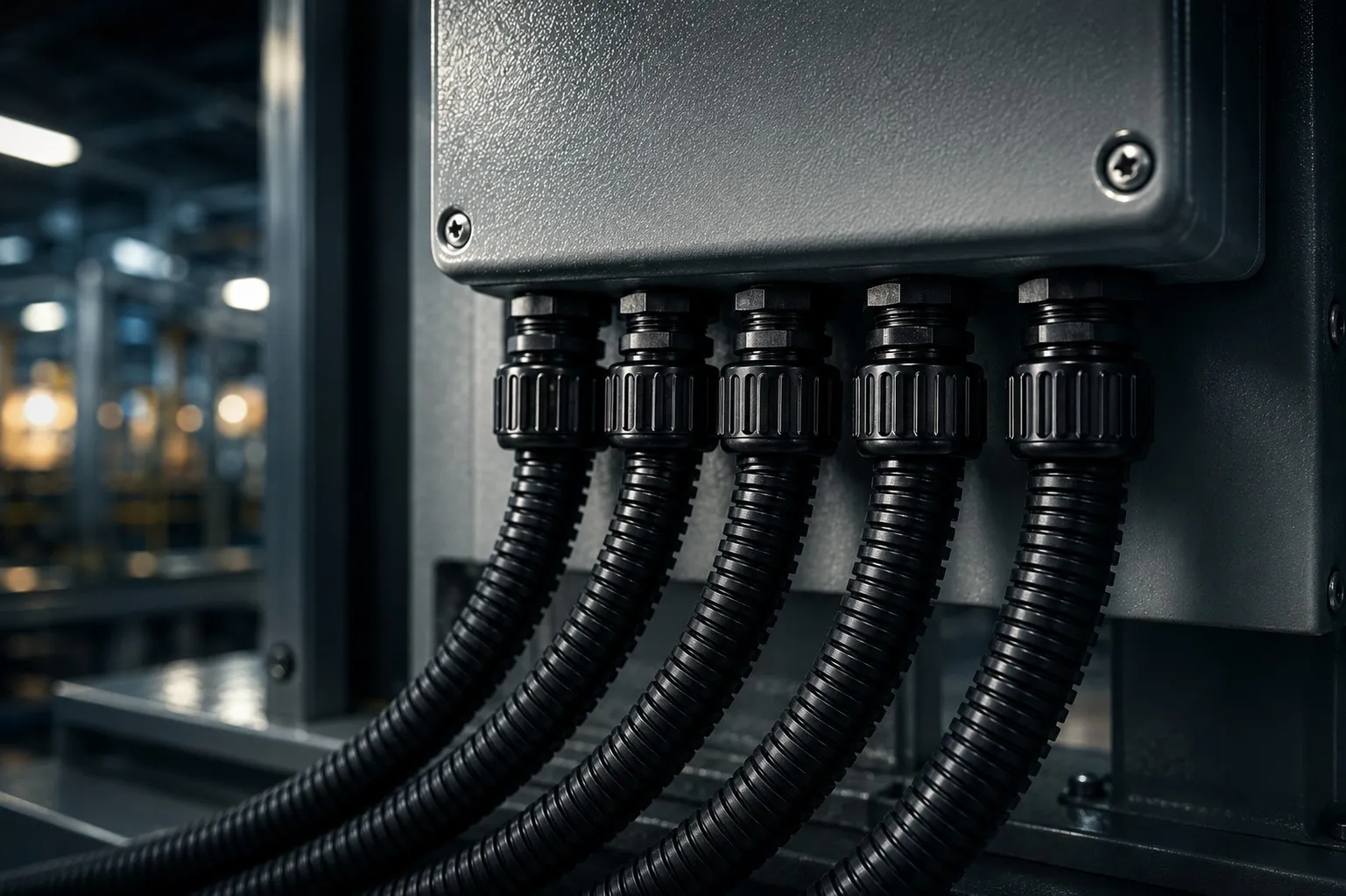

Application illustration
