Fiberglass Insulating Sleeving
Product image
Supporting sleeving & tubing

Fiberglass Insulating Sleeving

Fiberglass insulating sleeving protects leads in motors, appliances and other high-temperature electrical assemblies. Sizes can be selected by inner diameter and required breakdown-voltage grade.

Temperature-10°C to 200°C
Flame resistanceUL VW-1
Voltage grades1500–7000 V
Inquire about this product ↗

Data retained from the previous website. Confirm material grade and performance requirements for the selected model.

SpecificationsDrawingApplicationRelated products
TECHNICAL DATA

Specifications

TypeTest conditionsFlame resistanceTemperature resistanceBreakdown voltage gradeAverage voltageMinimum individual value
1500VUl1441ULVW- 1-10℃-+200℃D1500V1000V
2500VUl1441ULVW- 1-10℃-+200℃C2500V1800V
4000VUl1441ULVW- 1-10℃-+200℃B4000V2500V
7000VUl1441ULVW- 1-10℃-+200℃A7000V5000V
Download specification CSV ↓
Product dimensions and sizes
Inner diameterToleranceWall thickness TTolerancePacking quantity (m/roll)
φ0.8mm+0.3-0mm0.20mm±0.05mm200 m/roll
φ1.0mm+0.3-0mm0.25mm±0.05mm200 m/roll
φ1.5mm+0.3-0mm0.25mm+0.05mm200 m/roll
φ2.0mm+0.3-0mm0.30mm±0.05mm200 m/roll
φ2.5mm+0.3-0mm0.30mm±0.05mm200 m/roll
φ3.0mm+0.3-0mm0.30mm±0.05mm100 m/roll
φ3.5mm+0.3-0mm0.30mm±0.05mm100 m/roll
φ4.0mm+0.3-0mm0.35mm±0.05mm100 m/roll
φ4.5mm+0.3-0mm0.35mm±0.05mm100 m/roll
φ5.0mm+0.3-0mm0.35mm±0.05mm100 m/roll
φ6.0mm+0.4-0mm0.35mm±0.05mm100 m/roll
φ7.0mm+0.4-0mm0.35mm+0.05mm100 m/roll
φ8.0mm+0.4-0mm0.35mm±0.05mm50 m/roll
φ9.0mm+0.4-0mm0.40mm±0.05mm50 m/roll
φ10.0mm+0.5-0mm0.40mm±0.05mm50 m/roll
φ12.0mm+0.5-0mm0.40mm±0.05mm50 m/roll
φ13.0mm+0.5-0mm0.42mm+0.05mm50 m/roll
φ14.0mm+0.5-0mm0.42mm+0.05mm50 m/roll
φ15.0mm+0.5-0mm0.42mm±0.05mm50 m/roll
φ16.0mm+0.6-0mm0.45mm±0.05mm50 m/roll
φ17.0mm+0.6-0mm0.45mm+0.05mm50 m/roll
φ18.0mm+0.6-0mm0.45mm±0.05mm50 m/roll
φ19.0mm+0.6-0mm0.45mm±0.05mm50 m/roll
φ20.0mm+0.8-0mm0.45mm±0.05mm50 m/roll
φ25.0mm+0.8-0mm0.45mm±0.05mm25 m/roll
φ30.0mm+0.8-0mm0.50mm±0.05mm25 m/roll
φ35.0mm+0.8-0mm0.50mm±0.05mm25 m/roll
Download specification CSV ↓

Dimensional drawing

Contact us to confirm the drawing.

APPLICATION CONTEXT

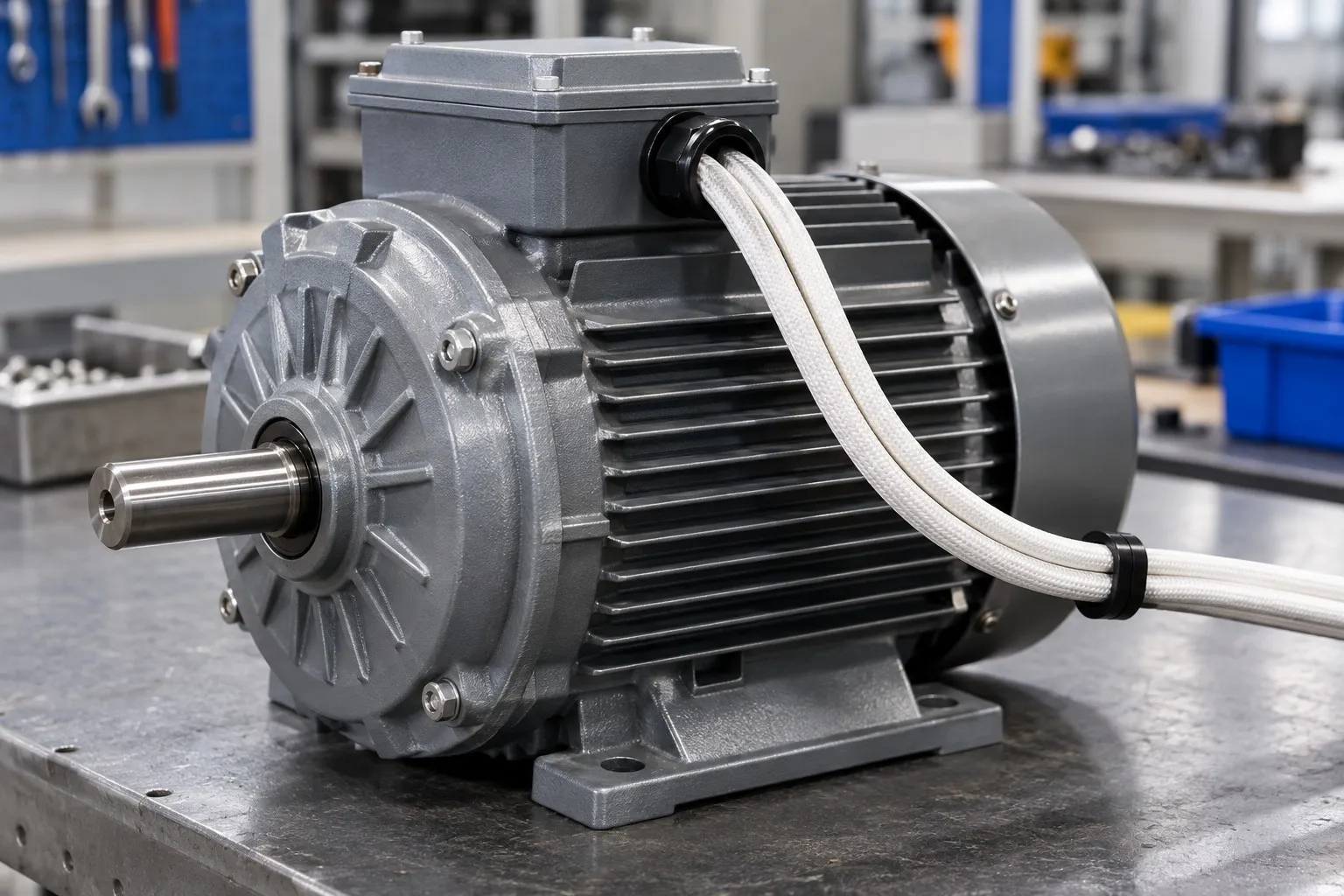

Application illustration

Fiberglass Insulating Sleeving application illustration
Confirm selection and operating conditions with us.
