Silicone Insulating Tubing
Soft, elastic silicone tubing combines electrical insulation with a wide operating-temperature range. It is suitable for electronics, appliances, building services and high-temperature lead protection.
Temperature-50°C to 200°C
FeaturesFlexible, low-smoke, halogen-free
ComplianceRoHS and SGS stated in source
Data retained from the previous website. Confirm material grade and performance requirements for the selected model.
TECHNICAL DATA
Download specification CSV ↓
Specifications
| Inner diameter ID | Wall thickness | Inner diameter ID | Wall thickness | Inner diameter ID | Wall thickness | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| thickening | |||||||||||
| ID | Tolerance | Tolerance | ID | Tolerance | wall | Tolerance | ID | Tolerance | wall | Tolerance | |
| tolerance | wall | tolerance | tolerance | tolerance | tolerance | ||||||
| φ0.8 | 0.2 | 0.5 | ±0.1 | φ0.8 | 0.2 | 0.6 | ±0.1 | φ0.8 | 0.2 | 1 | ±0.1 |
| -0.1 | -0.1 | -0.1 | |||||||||
| φ1.0 | 0.2 | 0.5 | ±0.1 | φ1.0 | 0.2 | 0.6 | ±0.1 | φ1.0 | 0.2 | 1 | ±0.1 |
| -0.1 | -0.1 | -0.1 | |||||||||
| φ1.2 | 0.2 | 0.5 | ±0.1 | φ1.2 | 0.2 | 0.6 | ±0.1 | φ1.2 | 0.2 | 1 | ±0.1 |
| -0.1 | -0.1 | -0.1 | |||||||||
| φ1.5 | 0.2 | 0.5 | ±0.1 | φ1.5 | 0.2 | 0.6 | ±0.1 | φ1.5 | 0.2 | 1 | ±0.1 |
| -0.1 | -0.1 | -0.1 | |||||||||
| φ2.0 | 0.2 | 0.5 | ±0.1 | φ2.0 | 0.2 | 0.6 | ±0.1 | φ2.0 | 0.2 | 1 | ±0.1 |
| -0.1 | -0.1 | -0.1 | |||||||||
| φ2.5 | 0.2 | 0.5 | ±0.1 | φ2.5 | 0.2 | 0.6 | ±0.1 | φ2.5 | 0.2 | 1 | ±0.1 |
| -0.1 | -0.1 | -0.1 | |||||||||
| φ3.0 | 0.2 | 0.5 | ±0.1 | φ3.0 | 0.2 | 0.6 | ±0.1 | φ3.0 | 0.2 | 1 | ±0.1 |
| -0.1 | -0.1 | -0.1 | |||||||||
| φ3.5 | 0.2 | 0.5 | ±0.1 | φ3.5 | 0.2 | 0.6 | ±0.1 | φ3.5 | 0.2 | 1 | ±0.1 |
| -0.1 | -0.1 | -0.1 | |||||||||
| φ4.0 | 0.2 | 0.5 | ±0.1 | φ4.0 | 0.2 | 0.6 | ±0.1 | φ4.0 | 0.2 | 1 | ±0.1 |
| -0.1 | -0.1 | -0.1 | |||||||||
| φ4.5 | 0.2 | 0.5 | ±0.1 | φ4.5 | 0.2 | 0.6 | ±0.1 | φ4.5 | 0.2 | 1 | ±0.1 |
| -0.1 | -0.1 | -0.1 | |||||||||
| φ5.0 | 0.2 | 0.5 | ±0.1 | φ5.0 | 0.2 | 0.6 | ±0.1 | φ5.0 | 0.2 | 1 | ±0.1 |
| -0.1 | -0.1 | -0.1 | |||||||||
| Φ6.0 | 0.2 | 0.5 | ±0.1 | φ6.0 | 0.2 | 0.6 | ±0.1 | φ6.0 | 0.2 | 1 | ±0.1 |
| -0.1 | -0.1 | -0.1 | |||||||||
| Φ7.0 | 0.2 | 0.7 | ±0.1 | φ7.0 | 0.2 | 0.8 | ±0.1 | φ7.0 | 0.2 | 1 | ±0.1 |
| -0.1 | -0.1 | -0.1 | |||||||||
| φ8.0 | 0.2 | 0.7 | ±0.1 | φ8.0 | 0.2 | 0.8 | ±0.1 | φ8.0 | 0.2 | 1 | ±0.1 |
| -0.1 | -0.1 | -0.1 | |||||||||
| φ9.0 | 0.2 | 0.8 | ±0.1 | φ9.0 | 0.2 | 0.9 | ±0.1 | φ9.0 | 0.2 | 1 | ±0.1 |
| -0.1 | -0.1 | -0.1 | |||||||||
| φ10 | 0.2 | 0.8 | ±0.1 | φ | 0.2 | 0.9 | ±0.1 | φ | 0.2 | 1 | ±0.1 |
| -0.1 | 10 | -0.1 | 10 | -0.1 | |||||||
| φ11 | 0.2 | 0.9 | ±0.1 | φ 11.0 | 0.2 | 1 | ±0.1 | φ | 0.2 | 1.5 | ±0.1 |
| -0.1 | -0.1 | 11 | -0.1 | ||||||||
| φ12 | 0.2 | 0.9 | ±0.1 | φ 12.0 | 0.2 | 1 | ±0.1 | φ 12.0 | 0.2 | 1.5 | ±0.1 |
| -0.1 | -0.1 | -0.1 | |||||||||
| φ13 | 0.2 | 1 | ±0.1 | φ 13.0 | 0.2 | 1.1 | ±0.1 | φ | 0.2 | 1.5 | ±0.1 |
| -0.1 | -0.1 | 13 | -0.1 | ||||||||
| Φ14 | 0.2 | 1 | ±0.1 | φ 14.0 | 0.2 | 1.1 | ±0.1 | φ | 0.2 | 1.5 | ±0.1 |
| -0.1 | -0.1 | 14 | -0.1 |
Dimensional drawing
Contact us to confirm the drawing.

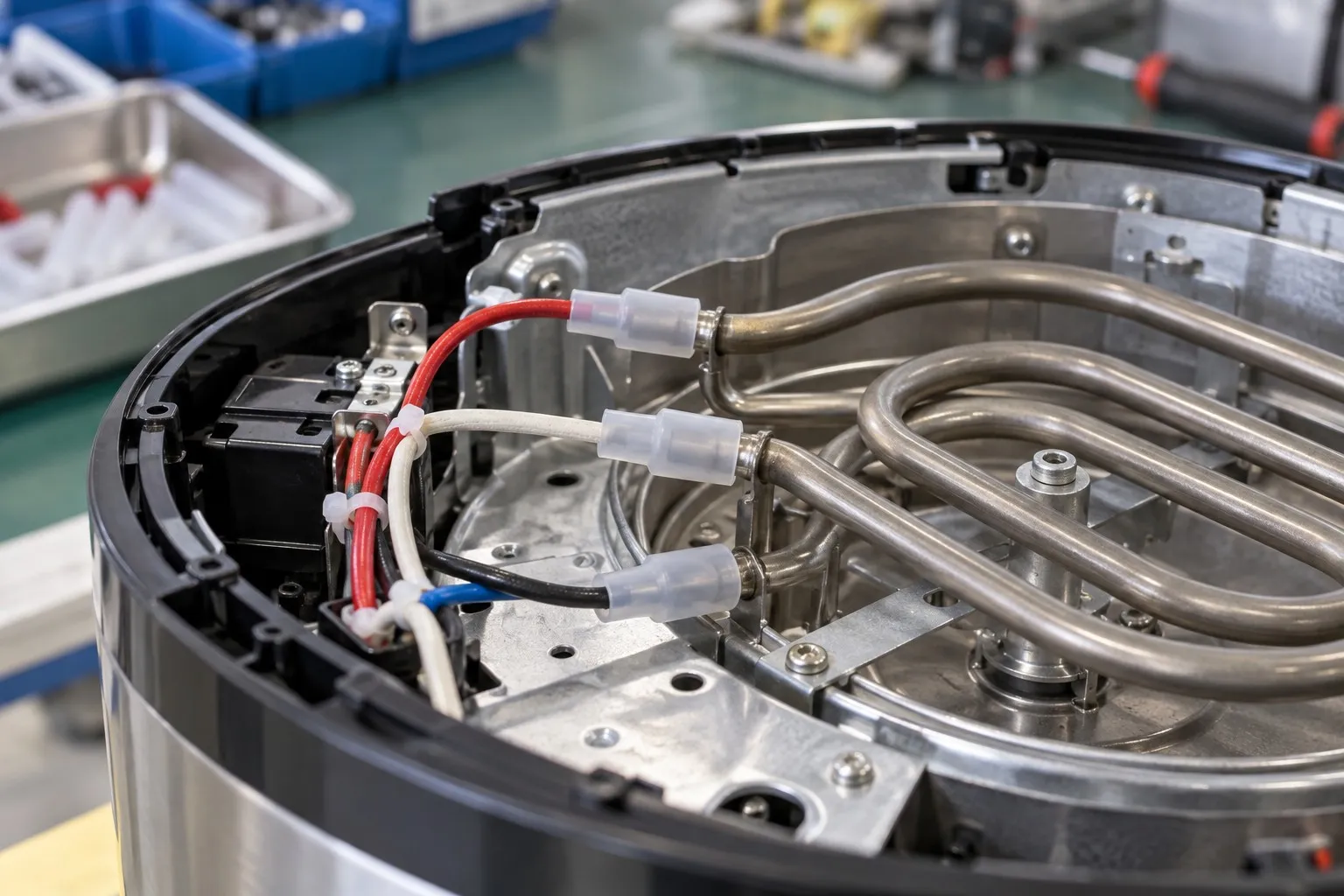

Application illustration
