Self-Closing Wraparound Braided Sleeving
The self-closing wraparound construction encloses cable bundles without removing connectors, making later cable additions, removal and maintenance easier. It is suitable for rail, automotive and automation equipment.
MaterialPolyester
Operating-50°C to 150°C
FlammabilityUL94 V-2
Data retained from the previous website. Confirm material grade and performance requirements for the selected model.
TECHNICAL DATA
Download specification CSV ↓
Download specification CSV ↓
Specifications
| Technical parameters | Dimensions and sizes | |||
|---|---|---|---|---|
| Material | Polyester | |||
| Operating temperature | -50℃-+150℃ | |||
| Melting point | 240±10℃ | |||
| Flammability | UL94 V2 | |||
| Certification | RoHS and halogen-free certification | |||
| Standard color | Black | |||
| Cutting tool | Hot knife |
| Model | Inner diameter | Maximum cable bundle diameter | Packing | |
|---|---|---|---|---|
| (d) | Overlap ratio (%) | (L) | ||
| SCW-006 | 6 | 0.25 | 7 | 100 m/roll |
| SCW-009 | 9 | 10 | 100 m/roll | |
| SCW-013 | 13 | 14 | 50 m/roll | |
| SCW-016 | 16 | 17 | 50 m/roll | |
| SCW-019 | 19 | 20 | 25 m/roll | |
| SCW-025 | 25 | 26 | 25 m/roll | |
| SCW-032 | 32 | 33 | 25 m/roll | |
| SCW-038 | 38 | 40 | 25 m/roll | |
| SCW-050 | 50 | 52 | 25 m/roll |

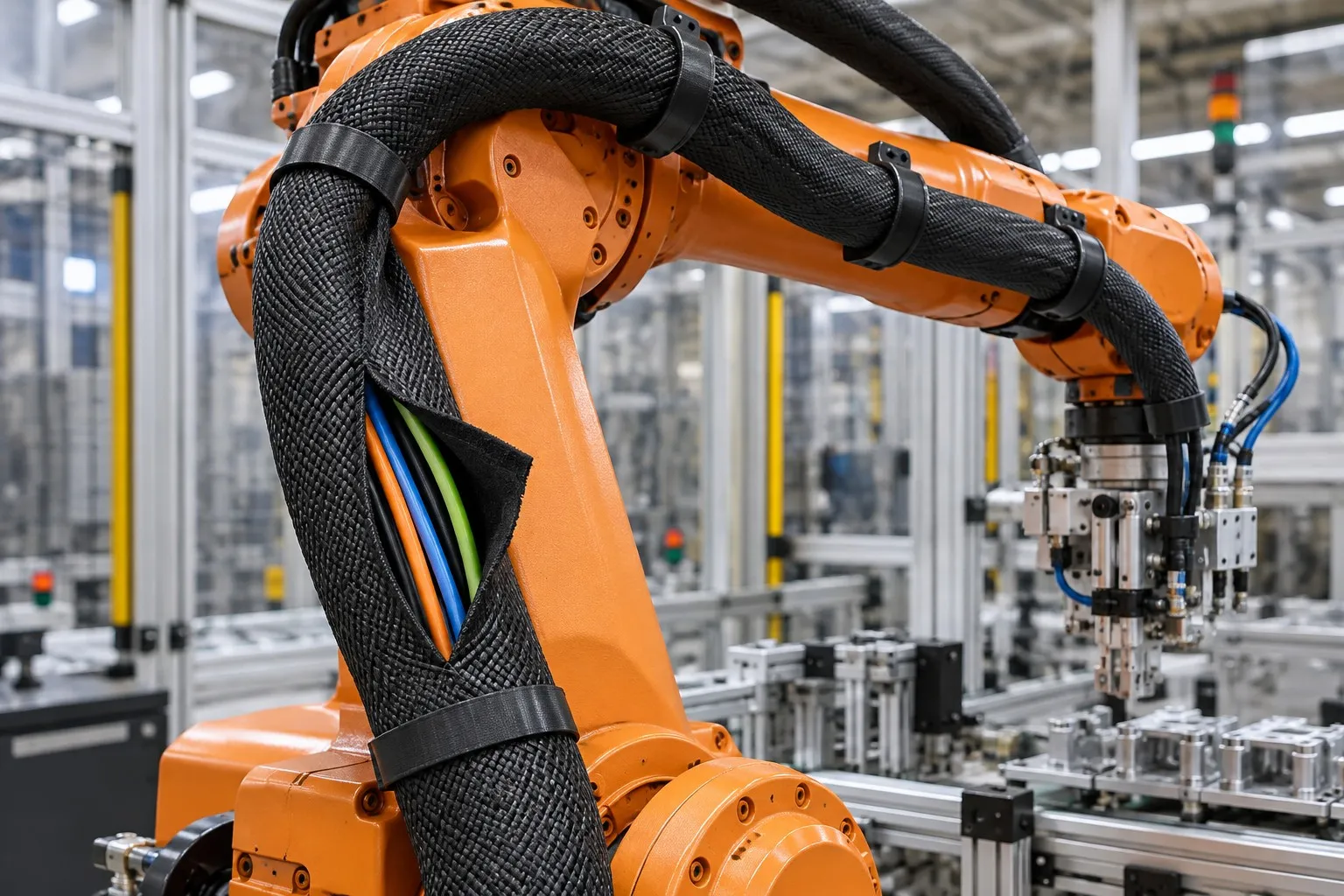

Application illustration
