PA Corrugated Conduit
Flexible PA6 conduit designed for reliable cable protection with strong abrasion resistance, weatherability and routing flexibility. It is suitable for automotive harnesses, machinery and engineered wiring, with split, flame-retardant and higher-temperature options available on request.
MaterialPA6 / Nylon 6
Temperature-40°C to 125°C
OptionsUL94 V-0; 150°C grade
Data retained from the previous website. Confirm material grade and performance requirements for the selected model.
TECHNICAL DATA
Download specification CSV ↓
Specifications

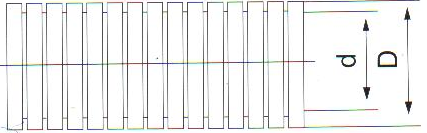

| Size | Inner diameter (mm) | Outer diameter (mm) | Bend radius (mm) | Packing (m/roll) | Notes or connector |
|---|---|---|---|---|---|
| AD7 | 5±0.5 | 7±0.5 | 15 | 500 M | None |
| AD7.5 | 5.5±0.5 | 7.5±0.5 | 15 | 500 M | None |
| AD9 | 6±0.5 | 9±0.5 | 15 | 500 M | None |
| AD10 | 7±0.5 | 10±0.5 | 25 | 500 M | PG7 |
| AD11 | 8±0.5 | 11±0.5 | 25 | 500 M | None |
| AD12 | 9±0.5 | 12±0.5 | 25 | 500 M | None |
| AD13 | 10±0.5 | 13±0.5 | 30 | 500 M | PG9 |
| AD14 | 11±0.5 | 14±0.5 | 30 | 300 M | None |
| AD15.8 | 12±0.5 | 15.8±0.5 | 35 | 200 M | PG11 |
| AD17 | 13±0.5 | 17±0.5 | 35 | 200 M | None |
| AD18.5 | 14.3±0.5 | 18.5±0.5 | 45 | 200 M | PG13.5 |
| AD19 | 15±0.5 | 19±0.5 | 45 | 200 M | None |
| AD20 | 16±0.5 | 20±0.5 | 50 | 200 M | None |
| AD21.2 | 17±0.5 | 21.2±0.5 | 50 | 200 M | PG16 |
| AD22 | 18±0.5 | 22±0.5 | 50 | 200 M | None |
| AD24 | 19±0.5 | 24±0.5 | 50 | 200 M | None |
| AD25 | 20±0.5 | 25±0.5 | 55 | 100 M | PG21 |
| AD28.5 | 23±0.5 | 28.5±0.5 | 60 | 100 M | PG21 |
| AD30 | 25±0.5 | 30±0.5 | 65 | 100 M | None |
| AD32 | 28±0.5 | 32±0.5 | 65 | 50 M | None |
| AD34.5 | 29±0.5 | 34.5±0.5 | 65 | 50 M | PG29 |
| AD42.5 | 36±0.5 | 42.5±0.5 | 80 | 50 M | PG36 |
| AD54.5 | 48±0.5 | 54.5±0.5 | 90 | 25 M | PG48 |

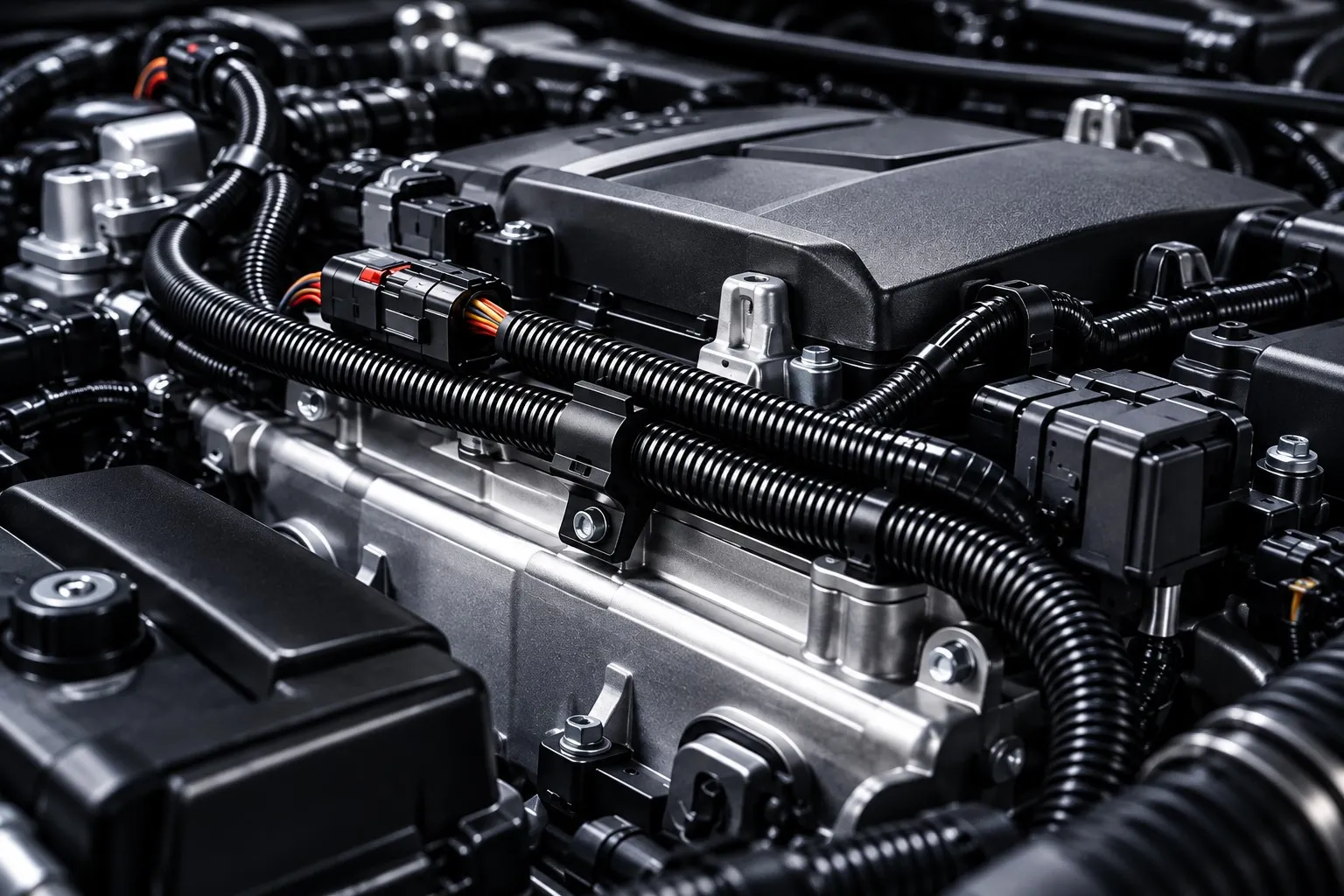

Application illustration
