PP Corrugated Conduit
Lightweight and flexible PP corrugated conduit helps protect cable bundles from abrasion and general acidic environments. It is suited to automotive wiring, control cabinets, equipment manufacturing and installation work.
MaterialPP / Polypropylene
Temperature-30°C to 105°C
Short-termUp to 125°C
Data retained from the previous website. Confirm material grade and performance requirements for the selected model.
TECHNICAL DATA
Download specification CSV ↓
Specifications

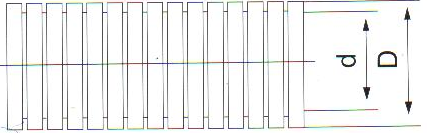

| Size | Inner diameter (mm) | Outer diameter (mm) | Bend radius (mm) | Packing (m/roll) | Connector |
|---|---|---|---|---|---|
| AD7 | 5±0.5 | 7±0.5 | 15 | 500 | None |
| AD7.5 | 5.5±0.5 | 7.5±0.5 | 15 | 500 | None |
| AD9 | 6±0.5 | 9±0.5 | 15 | 500 | None |
| AD10 | 7±0.5 | 10±0.5 | 25 | 500 | PG7 |
| AD11 | 8±0.5 | 11±0.5 | 25 | 500 | None |
| AD12 | 9±0.5 | 12±0.5 | 25 | 500 | None |
| AD13 | 10±0.5 | 13±0.5 | 30 | 500 | PG9 |
| AD14 | 11±0.5 | 14±0.5 | 30 | 500 | None |
| AD15.8 | 12±0.5 | 15.8±0.5 | 35 | 200 | PG11 |
| AD17 | 13±0.5 | 17±0.5 | 35 | 200 | None |
| AD18.5 | 14.3±0.5 | 18.5±0.5 | 45 | 200 | PG13.5 |
| AD19 | 15±0.5 | 19±0.5 | 45 | 200 | None |
| AD20 | 16±0.5 | 20±0.5 | 50 | 200 | None |
| AD21.2 | 17±0.5 | 21.2±0.5 | 50 | 200 | PG16 |
| AD22 | 18±0.5 | 22±0.5 | 50 | 200 | None |
| AD24 | 19±0.5 | 24±0.5 | 50 | 200 | None |
| AD25 | 20±0.5 | 25±0.5 | 55 | 100 | PG21 |
| AD28.5 | 23±0.5 | 28.5±0.5 | 60 | 100 | PG21 |
| AD30 | 25±0.5 | 30±0.5 | 65 | 100 | None |
| AD32 | 28±0.5 | 32±0.5 | 65 | 50 | None |
| AD34.5 | 29±0.5 | 34.5±0.5 | 65 | 50 | PG29 |
| AD42.5 | 36±0.5 | 42.5±0.5 | 80 | 25 | PG36 |
| AD54.5 | 48±0.5 | 54.5±0.5 | 90 | 25 | PG48 |

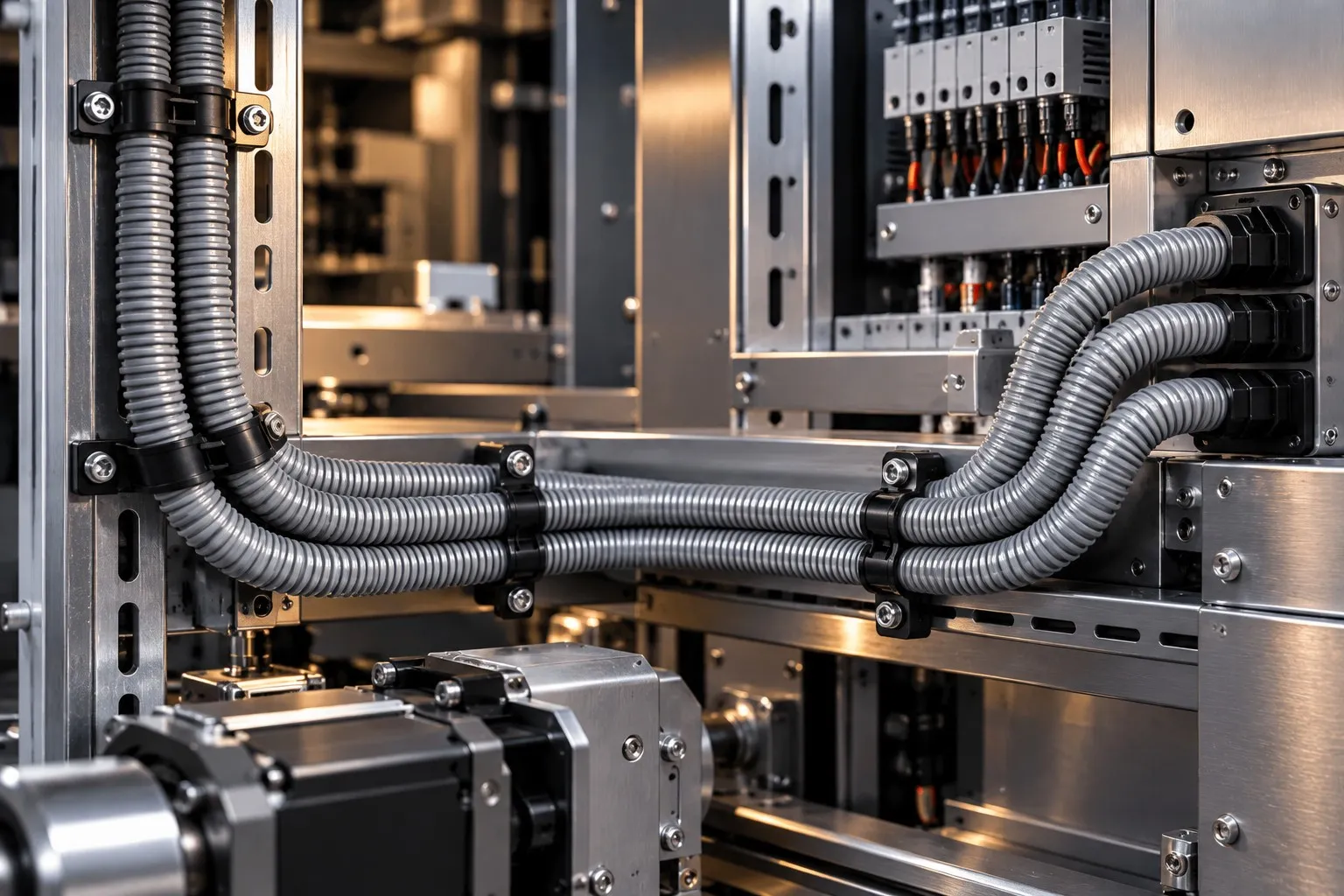

Application illustration
