PE Corrugated Conduit
PE corrugated conduit offers good flexibility, abrasion resistance and weatherability for toys, household appliances, equipment harnesses and general engineered wiring protection.
MaterialPE / Polyethylene
Temperature-40°C to 80°C
FeaturesFlexible, abrasion-resistant, weatherable
Data retained from the previous website. Confirm material grade and performance requirements for the selected model.
TECHNICAL DATA
Download specification CSV ↓
Specifications

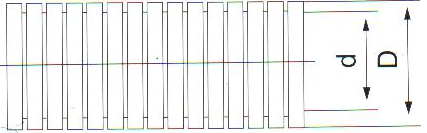

| Size | Inner diameter (mm) | Outer diameter (mm) | Bend radius (mm) | Packing (m/roll) | Connector |
|---|---|---|---|---|---|
| AD7 | 5±0.5 | 7±0.5 | 15 | 500 | None |
| AD7.5 | 5.5±0.5 | 7.5±0.5 | 15 | 500 | None |
| AD9 | 6±0.5 | 9±0.5 | 15 | 500 | None |
| AD10 | 7±0.5 | 10±0.5 | 25 | 500 | PG7 |
| AD11 | 8±0.5 | 11±0.5 | 25 | 500 | None |
| AD12 | 9±0.5 | 12±0.5 | 25 | 500 | None |
| AD13 | 10±0.5 | 13±0.5 | 30 | 500 | PG9 |
| AD14 | 11±0.5 | 14±0.5 | 30 | 500 | None |
| AD15.8 | 12±0.5 | 15.8±0.5 | 35 | 200 | PG11 |
| AD17 | 13±0.5 | 17±0.5 | 35 | 200 | None |
| AD18.5 | 14.3±0.5 | 18.5±0.5 | 45 | 200 | PG13.5 |
| AD19 | 15±0.5 | 19±0.5 | 45 | 200 | None |
| AD20 | 16±0.5 | 20±0.5 | 50 | 200 | None |
| AD21.2 | 17±0.5 | 21.2±0.5 | 50 | 200 | PG16 |
| AD22 | 18±0.5 | 22±0.5 | 50 | 200 | None |
| AD24 | 19±0.5 | 24±0.5 | 50 | 200 | None |
| AD25 | 20±0.5 | 25±0.5 | 55 | 100 | PG21 |
| AD28.5 | 23±0.5 | 28.5±0.5 | 60 | 100 | PG21 |
| AD30 | 25±0.5 | 30±0.5 | 65 | 100 | None |
| AD32 | 28±0.5 | 32±0.5 | 65 | 50 | None |
| AD34.5 | 29±0.5 | 34.5±0.5 | 65 | 50 | PG29 |
| AD42.5 | 36±0.5 | 42.5±0.5 | 80 | 25 | PG36 |
| AD54.5 | 48±0.5 | 54.5±0.5 | 90 | 25 | PG48 |

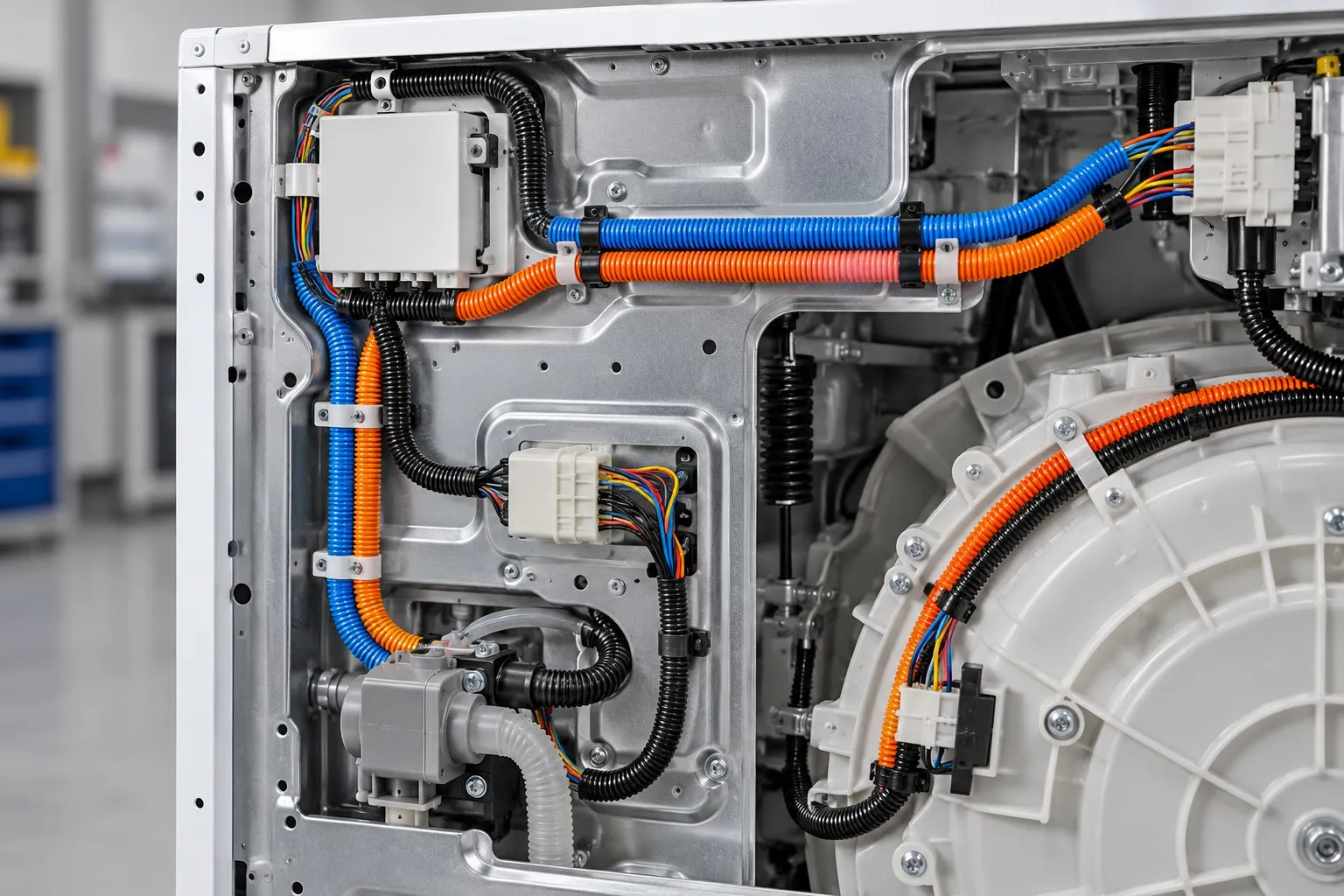

Application illustration
